Αρχική σελίδα Καλύμματα για Σκάφη Καλύμματα για Pilot/Cruiser Universal Pilot / Cruiser Boat Covers

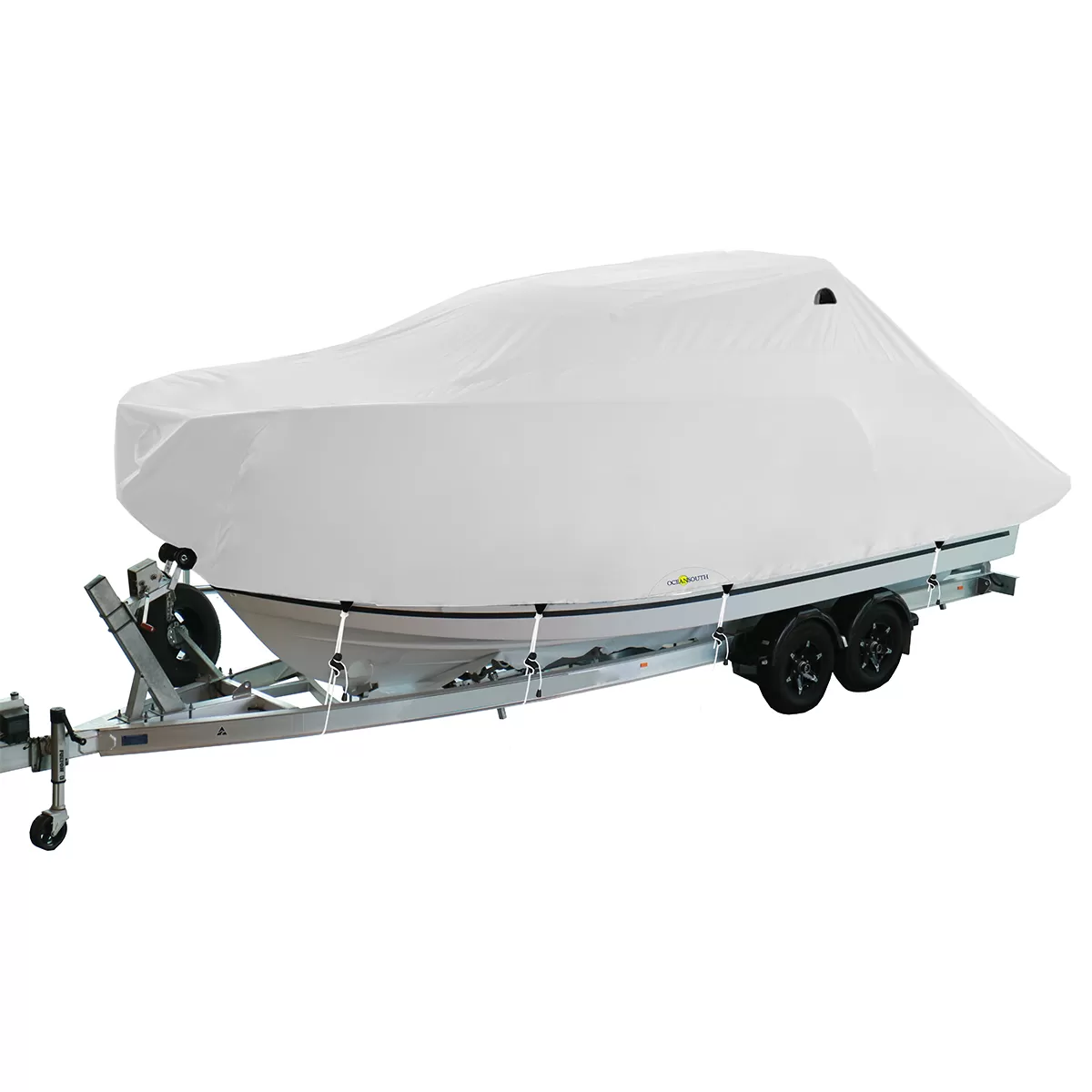

Universal Pilot / Cruiser Boat Covers

Pilothouse / Cabin Cruiser Style Diagram

Designed to fit Pilothouse / Cabin Cruiser-type boats.

High-quality cover.

Ideal for winter or long-term storage.



BOAT LENGTH MAX. BEAM WIDTH ORDER CODE
5.5-6.0m 2.5m MA 503-1
6.0-6.5m 2.7m MA 503-2
6.5-7.0m 2.7m MA 503-3
7.0-7.5m 2.9m MA 503-4
7.5-8.0m 2.9m MA 503-5
8.0-8.5m 3.1m MA 503-6
8.5-9.0m 3.1m MA 503-7
9.0-10.0m 3.5m MA 503-8
10.0-11.0m 3.5m MA 503-9

Click Here to find a Custom Boat Cover for your Pilot/Cruiser Boat >>

Boat Length
Fabric Type
Choose Color
Reset Selections
Από: 302.09 € excl. VAT
  • Κωδικός προϊόντος: MA 503P
DESCRIPTION
Pilothouse / Cabin Cruiser Style
  • Design to fit Pilot and Cruiser type boats.
  • Ideal for winter or long-term storage.
  • The cover is constructed of high-quality polyester or PVC Fabrics.
  • Flat double lock seam stitching and the highest quality UV threads ensure an extended life expectancy.
  • Double air vents provide air circulation.
  • 6mm braided rope encased in hem and rope ratchet for easy gathering and tightening up the cover.
  • Large storage is supplied when the cover is not in use.
  • A full set of Rope Ends, Rope Cleats, and Tie-down Rope.
MEASURING
INSTRUCTIONS
pilotdbb

1. Measure Boat Length
Measure in a straight line the centreline distance of your boat from Bow to Stern.

2. Measure Beam Width
Measure in a straight line the distance across the beam (widest point of your boat)

3. Measure Height (from gunwale)
Measure a straight line from the gunwale to the highest point on your boat including boat fittings e.g.cabins, windscreens, etc.



NOTE:  It is recommended that both measurement instructions are used to help you choose the correct cover size.

OVERALL FABRIC MEASUREMENTS

1. Measure Fabric Width
Using the ‘overall cover fabric width‘ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings
e.g. cabin, windscreens, etc. to the point on the hull where the cover’s hem will finish.

1. Measure Fabric Length
Using the ‘overall cover fabric length ‘ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens, etc. to the point on the hull where the cover’s hem will finish

Overall Cover Dimensions

W FABRIC WIDTH

L FABRIC LENGTH

pilotdb
BOAT LENGTH W FABRIC WIDTH L  FABRIC LENGTH CODE
5.5-6.0m 5900mm 8400mm MA 503-1
6.0-6.5m 5900mm 9000mm MA 503-2
6.5-7.0m 5900mm 9500mm MA 503-3
7.0-7.5m 6300mm 9900mm MA 503-4
7.5-8.0m 6300mm 10400mm MA 503-5
8.0-8.5m 7100mm 11600mm MA 503-6
8.5-9.0m 7100mm 12100mm MA 503-7
9.0-10.0m 7400mm 13200mm MA 503-8
10.0-11.0m 7400mm 14200mm MA 503-9



FABRIC
DETAILS
atlasfabricgrey

POLYESTER FABRIC DESCRIPTION

Weight 280g/m²
Material 100% High Tech Polyester
Water Column ≥ 150 mbar (1500 mm)
Light & Weather Fastness Note 6-7
Tensile Strength ≈ 2200 N¹ | 1400 N²
Elongation ≈ 40 %¹ | 30 %²
Colour Fastness to rubbing Note 4-5³ | Note 44
Chlorine Resistant Note 4-5
Water Repellency Note 100
Oil Repellency Note 4
Coating Polyurethan [PU]
UV Protection Factor UPF 50+ (measured > UPF 80)
atlaspvc

Oceansouth Χειμωνιάτικο Κάλυμμα βαρέως τύπου
(Λευκό Ύφασμα PVC)

Περιγραφή Σύνθετο πολλαπλών στρώσεων
Επίστρωση 1 πλευρά PVC
Ύφασμα βάσης 1000 Denier
Βάρος 430 g/m2
Πάχος 0.6mm
Αντοχή σε εφελκυσμό
(WARP/WEFT)
 320/350 daN/5cm
Αντοχή σκισίματος 47/51 daN
Αντοχή χρώματος >4/5 (1000 Ώρες)
Διήθηση UV UPF 50+
Αντοχή στη μούχλα 0 Βαθμός, Άριστη
Ακραίες θερμοκρασίες χρήσης  -20° / 70°
Εγγύηση 5 Έτη
